Informação detalhada

Modelo não.:	BPZ2008	Meio de medição:	Gás
Grau de precisão:	0.5g	Faixa de pressão:	0kpa~10kpa...4MPa
Classificação IP:	IP65	Personalizado:	Personalizado
Tipo de pressão:	Pressão diferencial	Material de moradia:	316L
Classificação de proteção:	IP65	Peso:	0,45 kg
Pacote de Transporte:	Embalagem padrão para exportação com cartão	Especificação:	Sensor de pressão de silício
Marca registrada:	Sensor HT	Origem:	Baoji, China
Código Hs:	9026209090	Capacidade de produção:	2000pcs/mês
Destacar:	5-digit LCD pressure gauge , digital pressure transmitter 9V , battery-powered differential pressure sensor

Descrição de produto

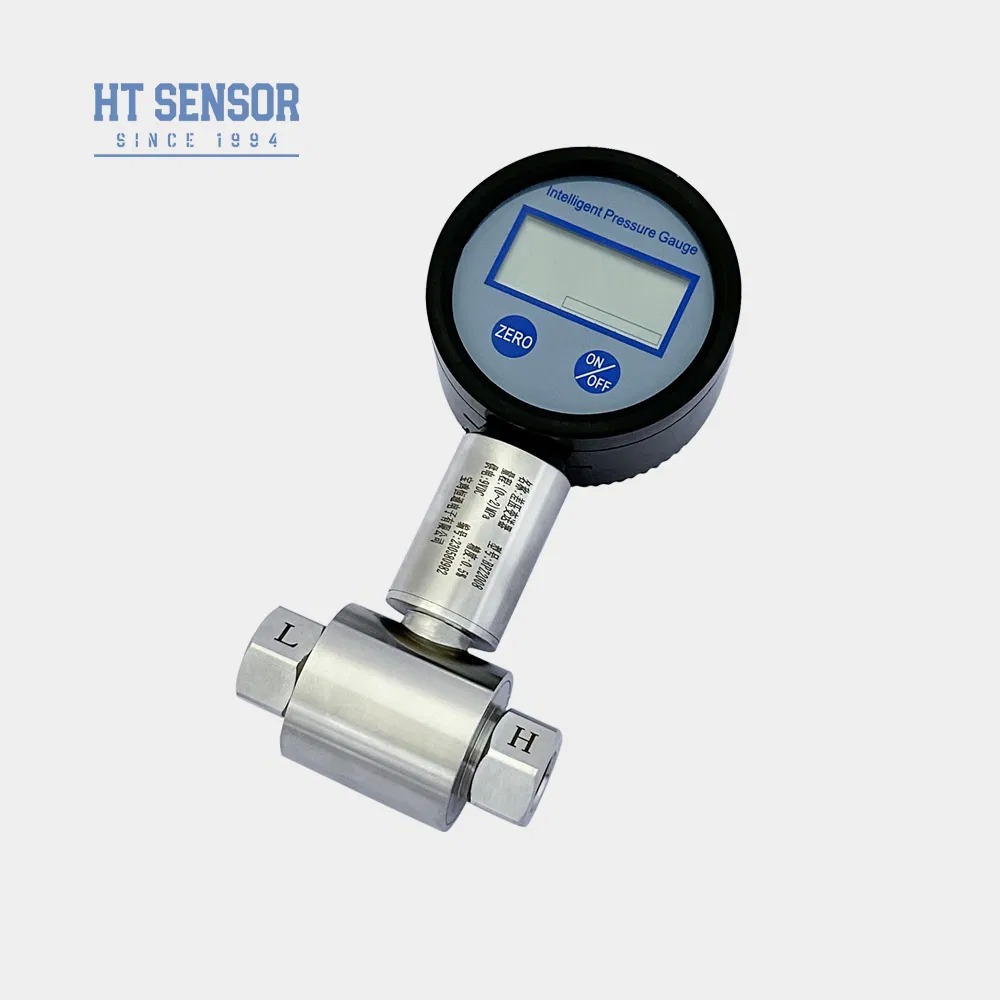

BPZ2008 Pressure Gauge/Switch

Introduction:
The BPZ2008 digital differential pressure gauge is a moisture-proof gauge with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes a piezoresistive diffused silicon sensor and integrated circuit design,housed in a rust-resistant iron casing. The gauge features a 5-digit LCD display and offers high reliability and stability

Product Features:
1. 5-digit LCD display
2. Powered by a 9V battery
3. Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
4. Peak hold and continuous reading functions

Applications:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications

Performance Parameters
Measurement Range	0-10KPa...~4MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Power Supply	9V alkaline battery.
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Point Temperature Drift	±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature	-1ºC~49ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	ABS,1Cr18Ni9Ti
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Protection Rating	IP65
Weight	~0.45kg

Ordering tips

1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. The 9V alkaline battery is not included in the product package. Please purchase it separately
5. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order

FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

Certificação:	CE, RoHS,ISO9001

Quantidade de ordem mínima:	1
Preço:	55

5-Digit LCD Differential Digital Pressure Gauge 9V Battery powered Pressure Transmitter
