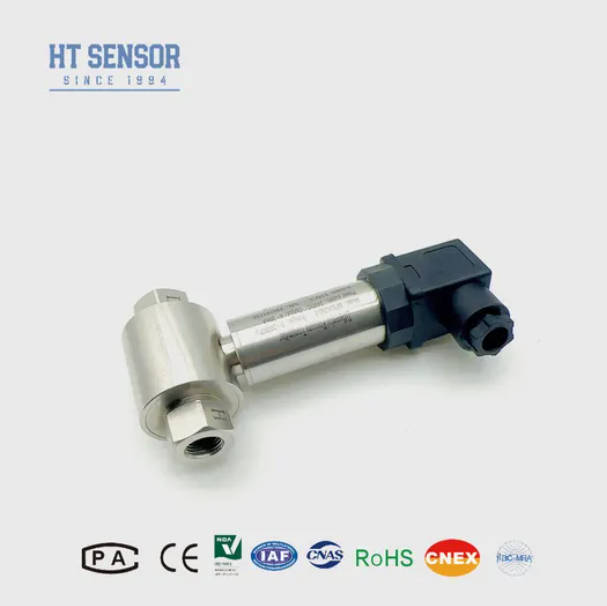

High Accuracy ±0.1% Differential Pressure Transmitter with Wide Temperature Range -40-85℃ and 300% Overload Pressure
Product Details
| Tipos da medida: | Pressão diferencial e pressão estática | Precisão: | ± 0,1% de extensão |
|---|---|---|---|
| Temperatura ambiente: | - 40-85 °C | Peso: | 0,5 kg |
| Pressão de sobrecarga: | 300% FS | Operar a temperatura: | -20 ~ 150 ℃ |
| Tipo de pressão: | Pressão diferencial | Conector elétrico: | Bloco de terminal, cabo |
| Temperatura de trabalho: | -10~70℃ | Umidade relativa: | 5~98%RH |
| Porta de pressão: | G1/4, G1/2 1/4NPT, 1/2NPT e outro | Tensão de fornecimento: | 24 (v) |
| Taxa de desaceleração: | 100:1 | Modelo no: | HT3351 |
| Material de moradia: | Alumínio | ||
| Destacar |
High Accuracy Differential Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter |
||
Product Description
- Stainless steel construction for durability and easy installation
- Rigorous temperature compensation and aging screening ensure stable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation
- Pipeline and furnace chamber pressure measurement
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30°C~80°C |
| Housing Material | 304, 316L stainless steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product materials before selection
- Recommended installation with three-valve manifold for pressure regulation
- Position pressure interfaces horizontally for optimal performance
- Specify special requirements (vibration, EMI/RFI protection) when ordering
