HTsensor BP156 Industrial Pressure Sensor for High-Performance Air Compressors and Refrigeration Equipment

Informação Básica

Lugar de origem:	Cn
Marca:	HT
Certificação:	CE, RoHS, ISO9001
Número do modelo:	BP156

Quantidade de ordem mínima:	1
Preço:	20

Melhor preço contacto

Informação detalhada

Modelo no.:	BP156	Meio de medição:	Gás
Grau de precisão:	0,2g	Faixa de pressão:	0kpa~10kpa...5MPa
Classificação IP:	IP65	Tipo de pressão:	Pressão de medição, pressão absoluta, pressão selada
Material de moradia:	316L	Peso:	0,1 kg
Material do diafragma:	316L	Temperatura operacional:	-20ºC ~ 80ºC
Temperatura de armazenamento:	-40ºC ~ 120ºC	Sinal de saída:	4 ~ 20MA, 0 ~ 10/20MA, 0/1 ~ 5V, 0/1 ~ 10V, 0,5 ~ 4,5V
Tensão de fornecimento:	12 ~ 30VDC, 5VDC	Resposta de frequência:	2.4kHz
Resistência ao isolamento:	100mΩ 100VDC
Destacar:	HTsensor BP156 pressure transmitter , 0.5-4.5V industrial pressure sensor , IP65 waterproof pressure transmitter

Descrição de produto

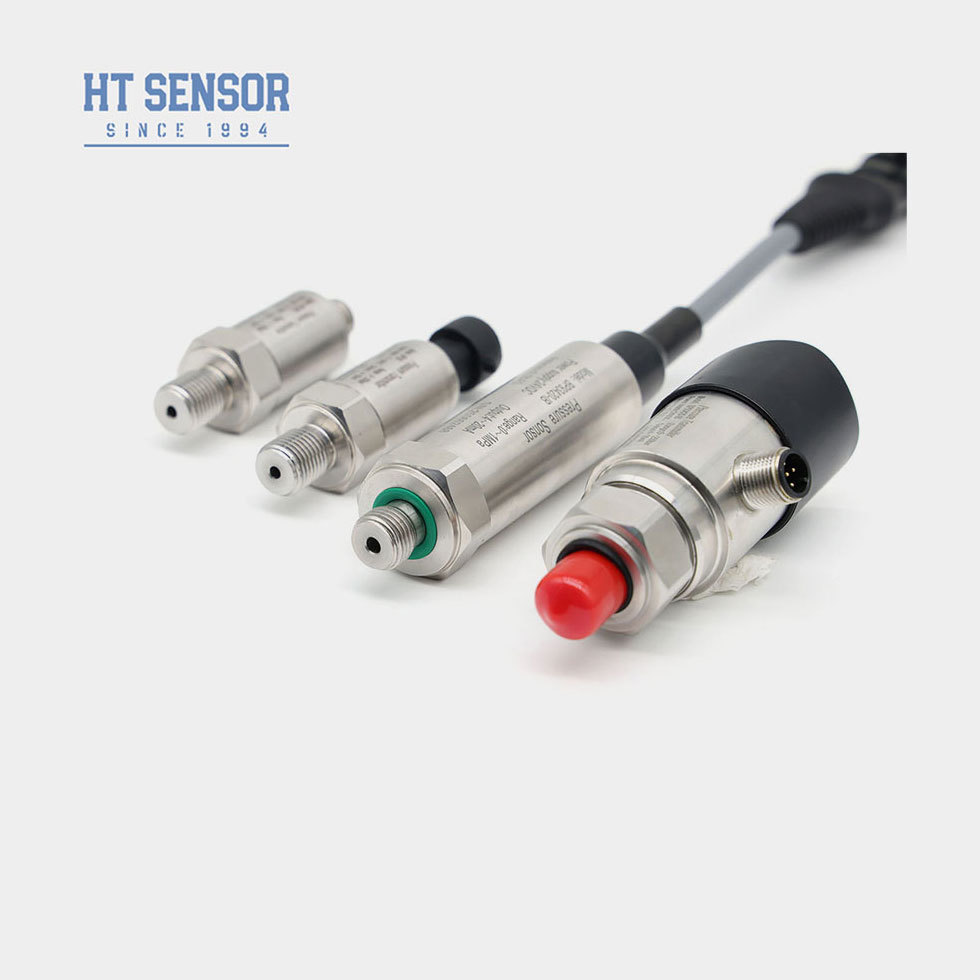

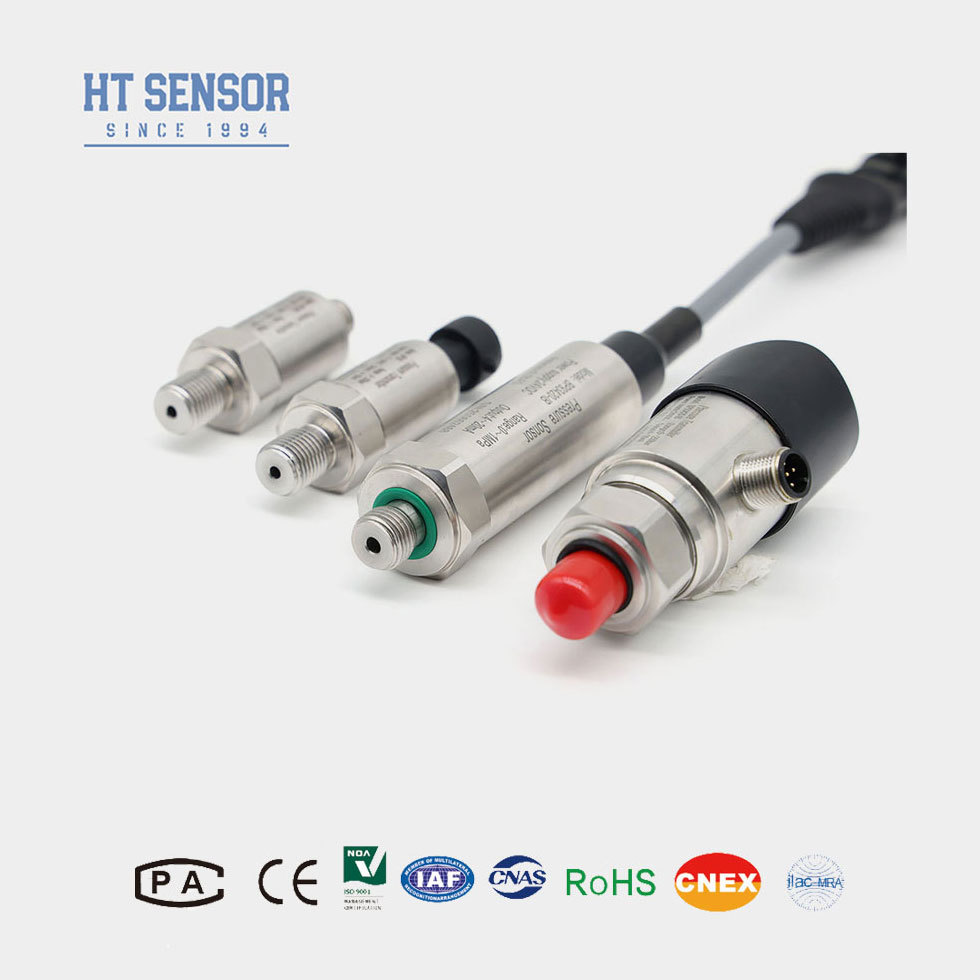

BP156 Pressure Transmitter

The BP156 pressure transmitter is a cost-effective solution designed specifically for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit developed in-house, this product offers compact size, superior moisture resistance, and excellent anti-electromagnetic interference capabilities.

Product Features

Wide measuring range with stainless steel structure and diverse pressure interface options
Compact and lightweight design for easy integration
Adjustable zero and full-scale settings
High precision measurement with all stainless steel construction

Applications

Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
Marine and aviation industry applications
Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.05kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Ordering Tips

Ensure the measured medium is compatible with the product's contact parts
Note that explosion-proof type products don't include digital display heads
For transmitters with LCD/LED display, power supply should not be below 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
Default cable length is 1.5m (polyethylene); specify alternative materials if needed
Inform us about special requirements like vibration, impact, or electromagnetic interference

Order Guide

BP15X \| Analog Pressure Transmitter
Code	Outline Construction
5	Packard plug
6	Sealed Direct Output Cable 1.5 meters
7	Mini Hirschmann Connector
8	Large Hirschmann Connector
Measurement Range: 0kPa ~ 10kPa…5MPa
(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large orders.

Q: What's the typical delivery period?

A: 5~8 working days for standard models. Customized products may vary.
