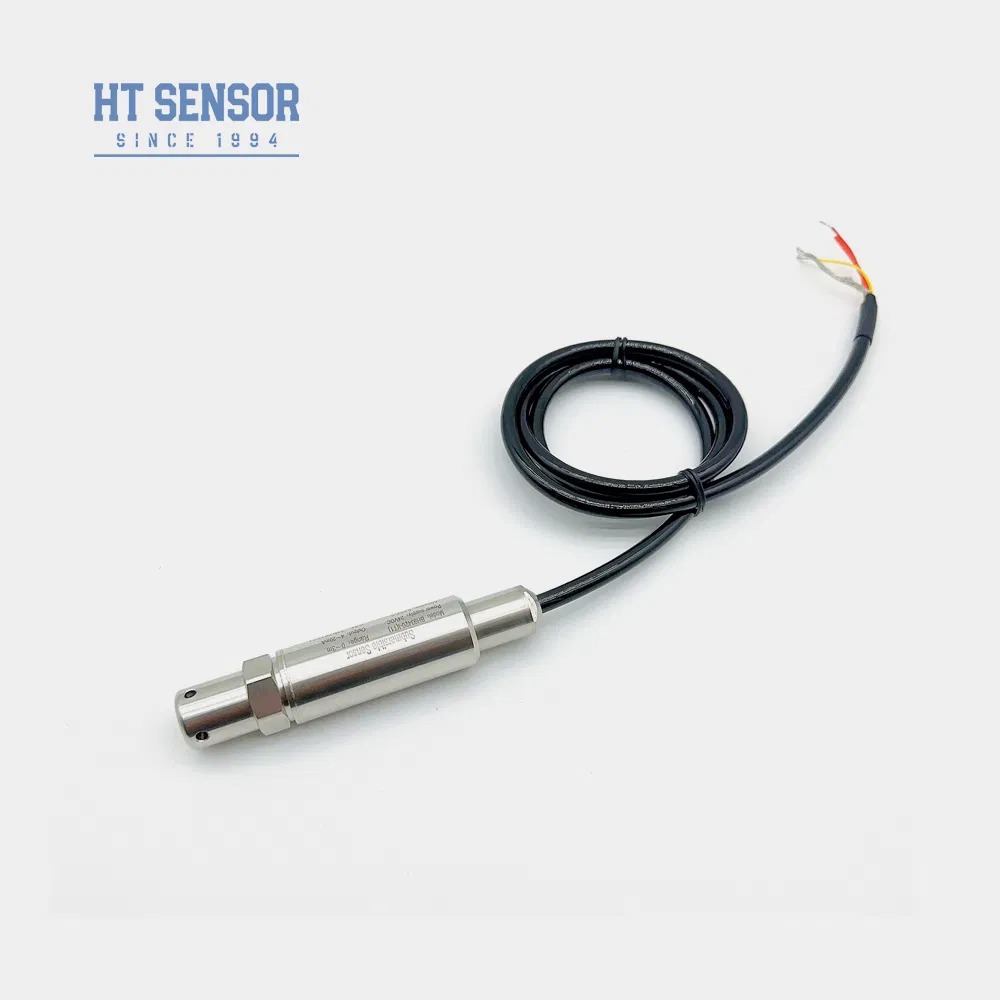

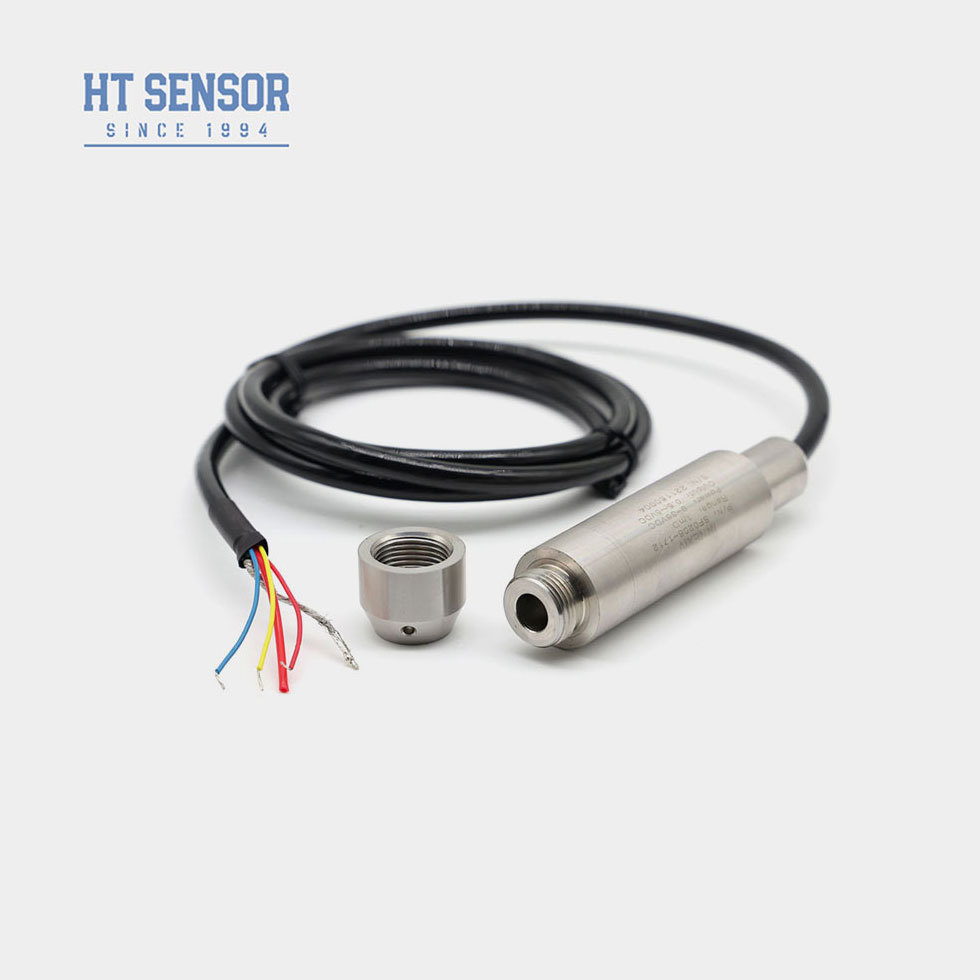

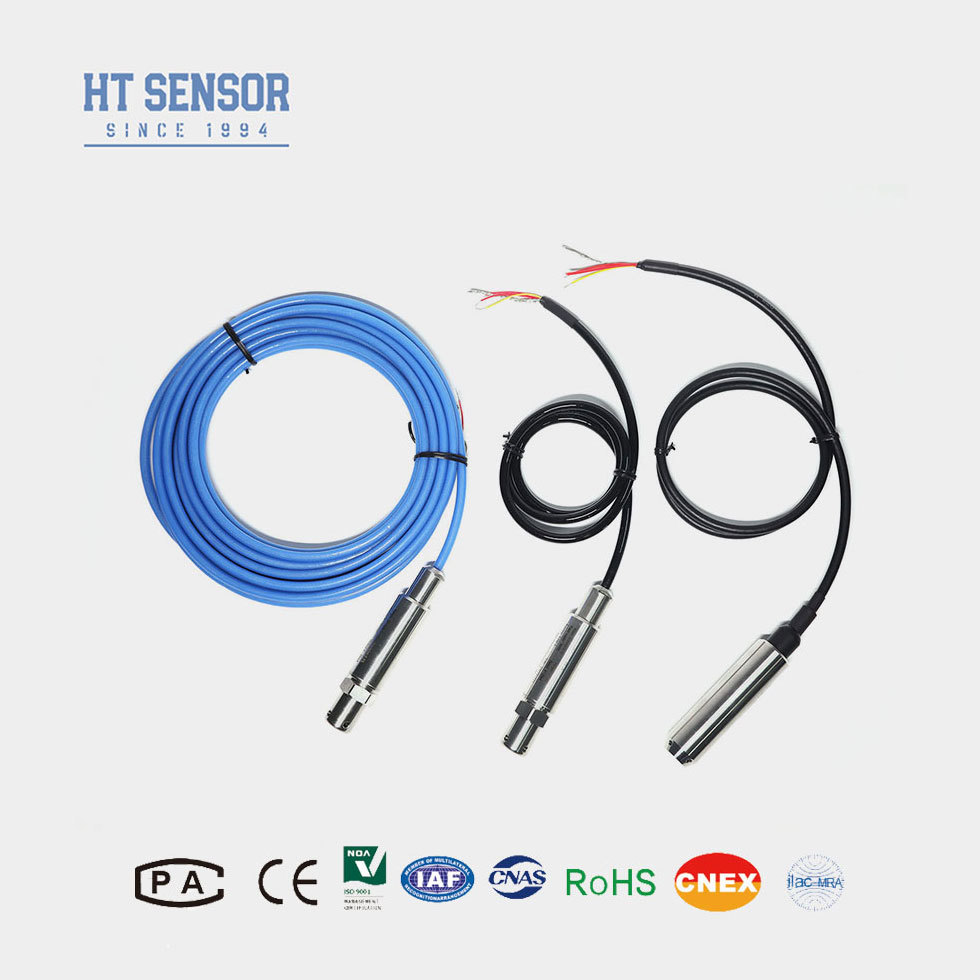

BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel

BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel
BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel
Informação Básica
Certificação: CE, RoHS, ISO9001
Quantidade de ordem mínima: 1
Preço: 60
Melhor preço contacto
Informação detalhada
Modelo No.: BH93420-IT Faixa de pressão: 0 ~ 10m… 400m
Grau de precisão: 00,25%,00,5% Classificação IP: IP68
Peso líquido: 0,3 kg Material do diafragma: 316L Aço inoxidável
Material do cabo: PU/PE/PTFE Temperatura operacional: -20°C a 80°C
Temperatura de armazenamento: -30 ~ 100ºC Material de moradia: 1CR18ni9TI, 316L Aço inoxidável
Resistência ao isolamento: > = 100mΩ@100VDC Classificação à prova de explosão: ExiaIICT6
Classificação de proteção: IP67, IP68 Sinal de saída: 4 ~ 20MA, 0 ~ 10/20MA, 0/1 ~ 5V, 0/1 ~ 10V, 0,5 ~ 4,5V
Tensão de fornecimento: 12 ~ 30VDC, 5VDC
Destacar:

stainless steel liquid level transmitter

,

IP68 water level transmitter

,

high accuracy liquid level sensor

Descrição de produto

Special Liquid Level Transmitter for Gasoline Pressure Transmitter Testing Sensor
BH93420-IT Liquid Level Transmitter
The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with a hexagonal and water guide head design, employing waterproof sealing technology to meet various installation requirements and adapt to different application scenarios.
BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel 0
Product Features
  • Fully welded design ensures safety and reliability
  • Dual options for probe insertion and threaded installation to meet various on-site installation needs
  • Rigorously tested for high and low temperatures, suitable for wide temperature range applications
  • Explosion-proof marking: ExiaIICT6
  • PTFT and PU cable options
  • Various output signal options available
Applications
  • Compatible with 316LSS and non-corrosive liquids
  • Monitoring water levels in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Measuring fuel levels in diesel and fuel tanks
Performance Parameters
Parameter Specification
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC (0-1m . 0-2m ); 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Shock 100g
Housing Material 1Cr18Ni9Ti, 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane
Output Signal Options
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V 5VDC
0/1~10V
0.5~4.5V
Ordering Tips
  • Ensure the measured medium is compatible with product components
  • Specify the density of the measured medium
  • For strong electromagnetic or radio frequency interference environments, provide details
  • Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
Code Option
BH93420 Pressure Transmitter
IT Measurement Range: 0~10m...400m
D1 24VDC Power Supply
D2 5VDC Power Supply
D3 Other Power Supply
S1 4~20mADC Output
S2 1~5VDC Output
S3 0~5VDC Output
S4 0~10mADC Output
S5 0~20mADC Output
S6 0~10VDC Output
S7 0.5~4.5VDC Output
S8 RS485 Output
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
01 304 Stainless Steel
02 316L Stainless Steel
C1 PU Cable
C2 PTFE Cable
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network support available.
