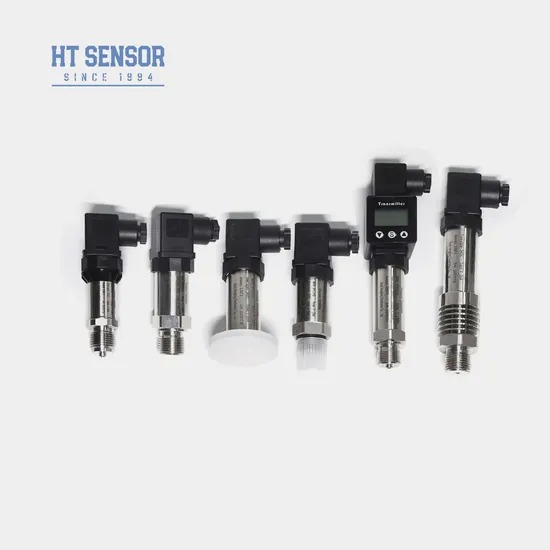

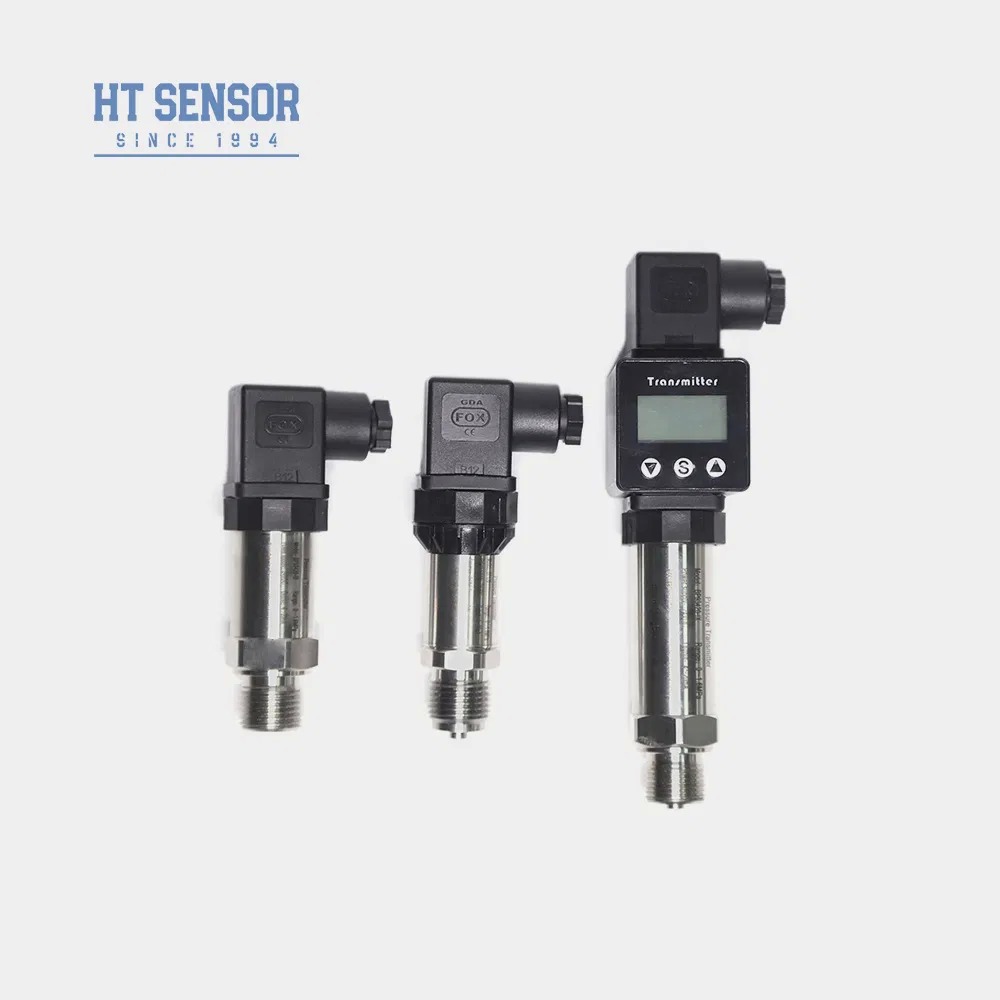

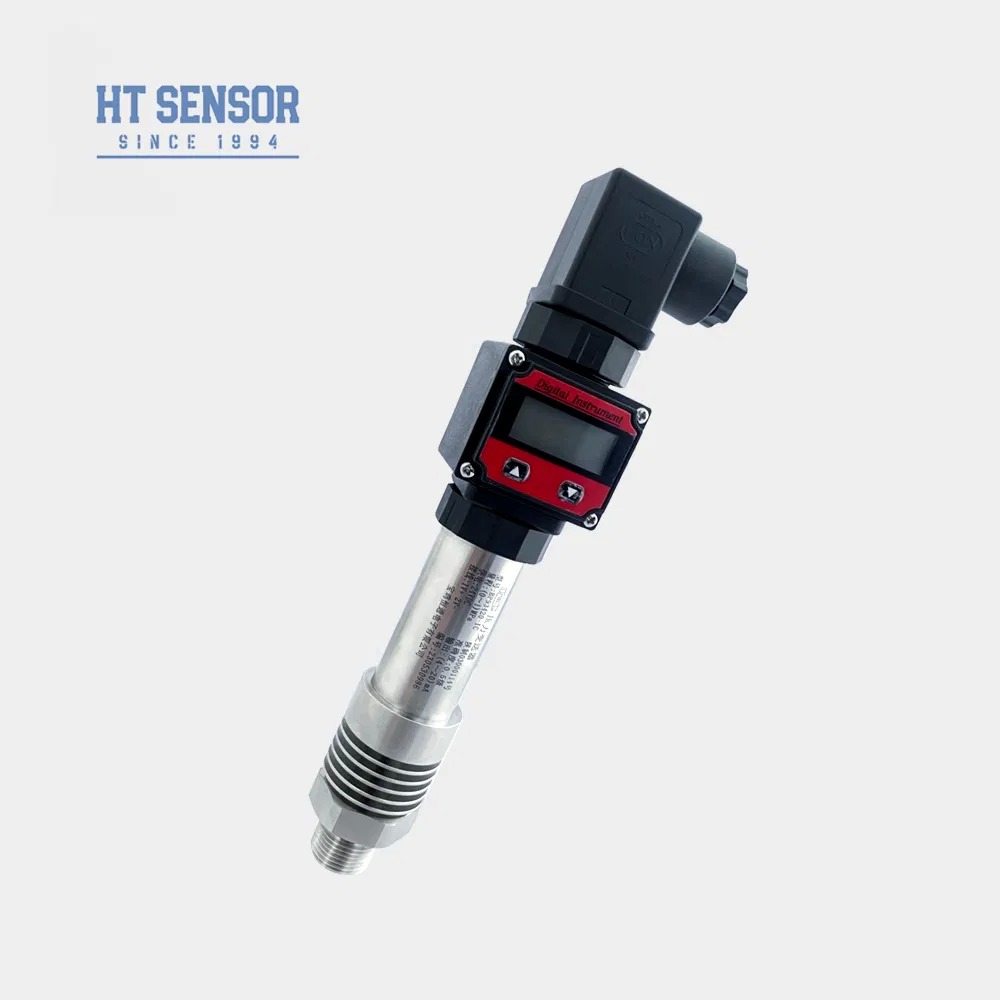

BP93420-IX Digital Pressure Transmitter 0.5% Accuracy IP65
Product Details
| Modelo No.: | BP93420-IX | Meio de medição: | Líquido |
|---|---|---|---|
| Grau de precisão: | ≤ 0,5%F.S. | Faixa de pressão: | - 100kpa... 0kpa ~ 10kpa... 100MPa |
| Classificação IP: | IP65 | Tipo de pressão: | Pressão de medição, pressão absoluta, pressão selada |
| Material de moradia: | 316L Aço inoxidável | Resposta de frequência: | 2.4kHz |
| Capacidade de sobrecarga: | ≤ 1,5 vezes a faixa nominal | Temperatura operacional: | -20ºC ~ 80ºC |
| Temperatura de armazenamento: | -40ºC ~ 120ºC | Material do diafragma: | 316L |
| Resistência ao isolamento: | 100mΩ 100VDC | Peso: | ~ 0,25 kg |
| Tensão de fornecimento: | 12 ~ 30VDC, 5VDC, 3,6 ~ 30V / bateria | ||
| Destacar |
Digital Pressure Transmitter 0.5% Accuracy,IP65 Industrial Pressure Sensor,BP93420-IX Pressure Transmitter with Warranty |
||
Product Description
- Wide measurement range with stainless steel construction
- Multiple pressure interface options available
- High precision with optional digital display
- Scientific research applications
- Petroleum and chemical industries
- Marine and aviation sectors
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g, 55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- For LCD/LED displays, power supply ≥20VDC required
- Install lightning protection and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
- Default 1.5m polyethylene cable (other materials available)
- Specify special requirements (vibration, EMI, etc.) when ordering
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| Additional codes and configurations available - see full specifications | |
Product Highlights
BP93420-IX Pressure Transmitter The BP93420IX pressure transmitter utilizes the HT series silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element. This integrated pressure transmitter combines pressure measurement, display, and output functions. Rigorously tested ...
