Casa > Produtos> Transmissor de nível de água> BH93420-III Water Level Transmitter 0.25% Accuracy IP68 PTFE Cable

BH93420-III Water Level Transmitter 0.25% Accuracy IP68 PTFE Cable

Informação Básica

Certificação:	CE,RoHS

Quantidade de ordem mínima:	1
Preço:	50

Melhor preço contacto

Informação detalhada

Modelo No.:	BH93420-III	Sinal de saída:	Tipo analógico
Tipo de sonda:	Tipo de sonda	Classificação IP:	IP68
Peso líquido:	0,3 kg	Material do diafragma:	316L Aço inoxidável
Precisão:	00,25%, 0,5%	Material do cabo:	PE, PU, PTFE
Faixa de medição:	0 ~ 10m… 400m	Tipo de pressão:	Pressão de medição, pressão absoluta, pressão selada
Capacidade de sobrecarga:	≤ 2x intervalo	Temperatura operacional:	-20°C a 80°C
Temperatura de armazenamento:	-30 ~ 100ºC	Material de moradia:	Alumínio fundido, 1Cr18ni9Ti
Classificação à prova de explosão:	ExiaIICT6
Destacar:	Water Level Transmitter with PTFE cable , IP68 Water Level Transmitter , High accuracy Water Level Transmitter

Descrição de produto

OEM Level Pressure Transmitter Liquid Sensor For Water Test PTFE Cable Transducer Water Leak Sensor

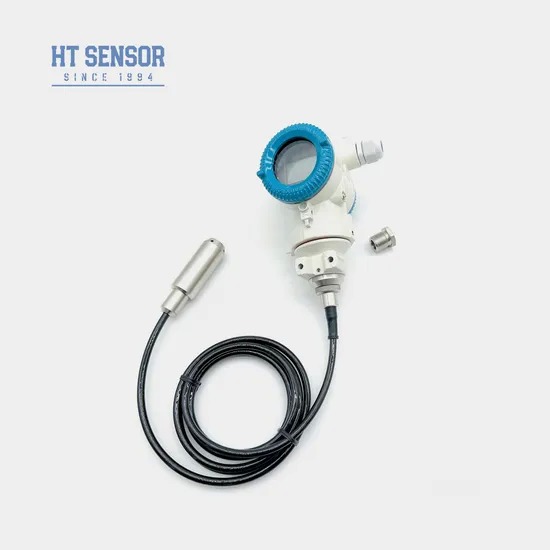

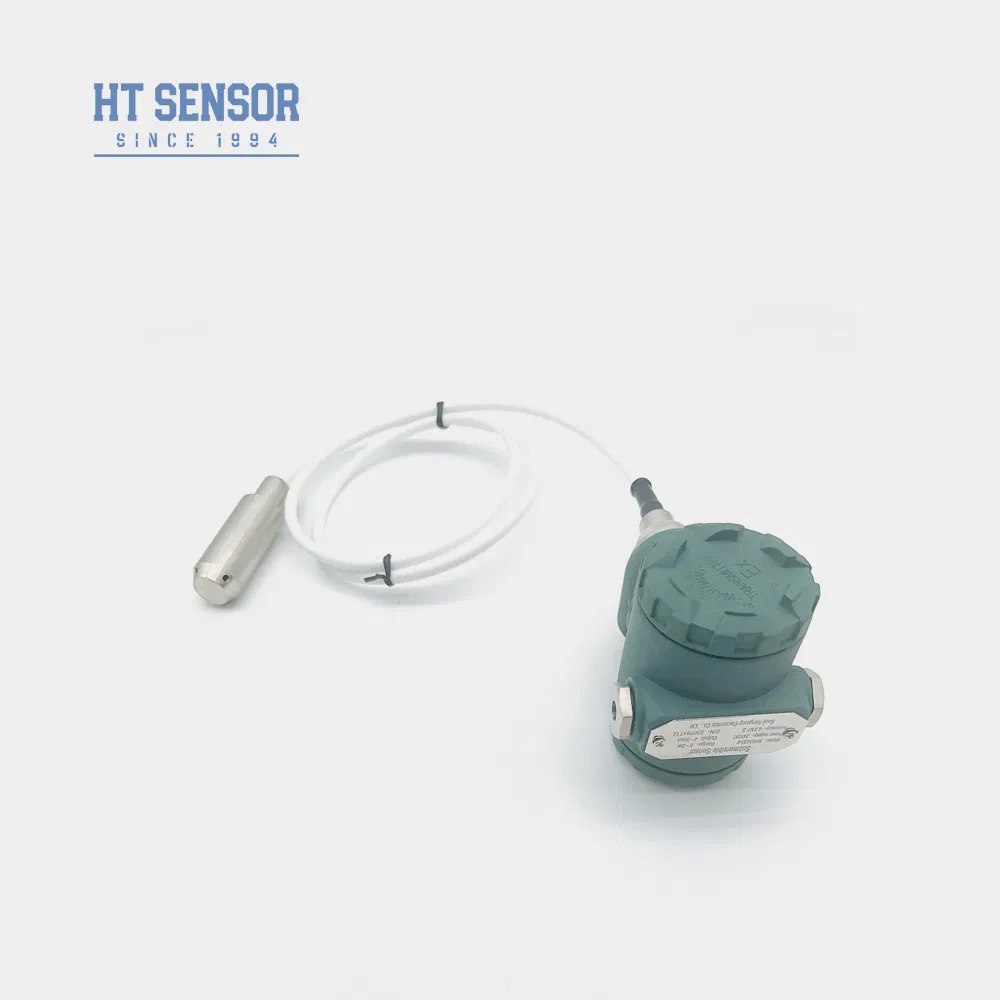

BH93420-III Water Level Transmitter

The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure (directly related to water level) and converts it into standard signal output using amplification circuitry, establishing a linear relationship between output signal and liquid level for precise measurement.

Product Features

Split-type design for easy on-site wiring and calibration
LED display
Explosion-proof rating: ExiaIICT6
High protection: IP68
Cable options: PE, PU, PTFE

Applications

Compatible with 316LSS and non-corrosive liquids
Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Parameters

Measurement Range	0~10m...400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Outline Construction

Electrical Connection

Selection Examples

Ordering Tips

Ensure measured medium compatibility with product components
Specify measured medium density
For strong electromagnetic/RF interference environments, provide details in order
Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

Code	Description
BH93420	Liquid level transmitter
III	2088 housing
D1	24VDC power supply
S1	4~20mADC output
S2	RS485 output
B5	2088 with display
B6	3051A
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure
01	304 Stainless Steel
02	316L Stainless Steel
C1	PE cable
C2	PU cable
C3	PTFE cable

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty and after-sales service?

A: 24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.
